Large Span Steel Structure Agricultural Greenhouse with High Strength Steel Frame and Modular Customizable Design up to 30 Meters

Name: Large Span Steel Structure Agricultural Greenhouse with High Strength Steel Frame and Modular Customizable Design up to 30 Meters
Brand: Shunyao Supply Chain
Price: 40 USD

Buy cheap Large Span Steel Structure Agricultural Greenhouse with High Strength Steel Frame and Modular Customizable Design up to 30 Meters product

Brand Name : Shunyao Supply Chain

Place of Origin : Chengdu , China

MOQ : 100 PCS

Price : $40-200

Payment Terms : T/T

Supply Ability : Excellent

Delivery Time : 5-15 days

Packaging Details : Bundles

Installationtime : Typically 2-4 weeks

Structure Type : High Strength Steel Structure Frame

Roof And Wall : Steel Sheet Or Sandwich Panel

Corrosionresistance : Galvanized or painted coating

Fireresistance : Fire-resistant steel grade

Structuraldesign : Modular and customizable

Wind Resist : Design as exect data, max to 250km/h

Loadbearingcapacity : High

Buildingtype : Commercial/Industrial/Residential

Flange Width : 50-300mm

Secondary Structure : Purlin; Brace; Knee Brace etc

Spanwidth : Up to 30 meters without internal columns

Raw Steel Material : Q235B, Q355B, ASTM A36

Building Structure Type : Light Steel Structure

Frametype : Prefabricated steel frame

Contact Now

Large-Span Steel Structure Agricultural Greenhouse

Modern integrated factory solution for breeding, storage, and agricultural production

Product Overview

This large-span steel structure agricultural greenhouse features a high-strength steel main body with exceptional stability and optimal space utilization. Designed for modern breeding operations, agricultural product storage, and multi-functional agricultural production, the building offers flexible configurations that can be customized to meet specific project requirements across different regions and farm scales.

High-quality steel construction with excellent wind, snow load, and corrosion resistance
Multiple roofing and wall material options including colored steel sheets, daylighting panels, or insulated composite panels
Superior daylighting, ventilation, and thermal insulation for stable breeding and storage environments
Spacious column-free or minimal-column interior design for large equipment access and mechanized operations
Modular construction with short installation periods and reduced construction/maintenance costs

Applications

Ideal for livestock and poultry breeding (cattle sheds, pig houses, poultry houses), agricultural machinery and feed storage, agricultural product processing, and modern agricultural park construction. This solution combines practicality, durability, and cost-effectiveness.

Technical Specifications

Product Name	Large Span Steel Structure Agricultural Greenhouse
Building Type	Steel Structure Agricultural Building
Application	Livestock Farming / Storage / Agricultural Processing
Structure Form	Portal Frame Steel Structure
Design Service Life	≥25 Years
Design Standard	According to Local Building Codes
Span Width	18m / 24m / 30m / 36m (Customized)
Building Length	Unlimited (Modular Extension)
Eave Height	4–8 m (Customized)
Ridge Height	6–10 m (Customized)
Column Spacing	6 m / 7.5 m / 9 m
Internal Space	Large clear span, column-free or minimal columns
Main Frame	H-section Steel (Q235B / Q355B)
Secondary Frame	C / Z Purlins
Connection Type	High Strength Bolts
Surface Treatment	Hot-dip Galvanized / Anti-rust Painting
Fabrication	Factory Prefabrication

Material Options

Roof Material	Color Steel Sheet / Insulated Sandwich Panel
Wall Material	Color Steel Sheet / Sandwich Panel
Insulation Material	Rock Wool / PU / EPS
Skylight	FRP / PC Sheet
Ventilation	Natural Ventilation / Ridge Ventilator

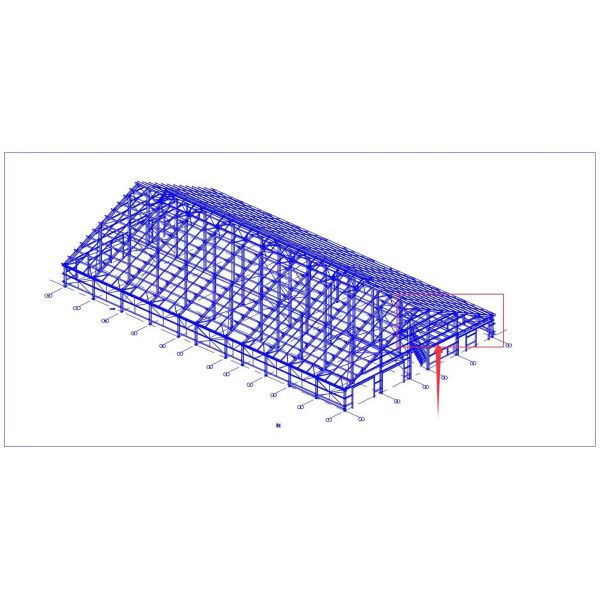

Design Structure Diagram
