Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame

Name: Model D07 Luxury 40 Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Brand: Shunyao Supply Chain
Price: 699 USD

Buy cheap Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame product

Brand Name : Shunyao Supply Chain

Model Number : D07

Certification : CE,ISO

Place of Origin : Chengdu , China

MOQ : 1 PCS

Price : $699-5,999

Payment Terms : T/T

Supply Ability : Excellent

Delivery Time : 5-15 Days

Packaging Details : Bundles

Dimensions : 11,000mm × 3,600mm × 3,200mm (L × W × H)

Floor Area : 40m²

Total Weight : 10 Tons

Wall Thickness : 50mm to 100mm

Frame Material : Galvanized Steel

Glass Type : Double-pane LOW-E tempered glass

Lighting Temperature : 4000K

Floor Material : Plywood with Waterproof Coating

Service Life : 10-15 years

Insulation Material : Polyurethane foam

Contact Now

Model D07 Luxury Mobile Space Capsule House - 40㎡ Prefabricated Tiny Home with Panoramic Glass View

Overview

The Model D07 reimagines modern living through a fusion of futuristic aesthetics and industrial-grade engineering. With a spacious 40m² footprint, this prefabricated mobile unit is designed for luxury eco-resorts, high-end glamping sites, and private backyard villas. Featuring a signature 270-degree panoramic glass wall, it offers an immersive connection with nature without compromising on the comforts of a high-end hotel suite.

Key Specifications

Dimensions 11,000mm × 3,600mm × 3,200mm (L × W × H)

Total Floor Area 40m² (Approx. 430 sq ft)

Total Weight Approx. 10 Tons

Occupancy Ideal for 2-4 persons (Studio/One-bedroom layout)

Foundation Minimal requirement; supports various terrains (steel pillars, concrete pads, or flat ground)

Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame

Premium Features

Aerospace-Grade Durability

Constructed with a heavy-duty galvanized steel frame and corrosion-resistant aluminum alloy exterior shell. Built to withstand extreme weather conditions while maintaining its sleek, futuristic finish for decades.

Panoramic Living Experience

Equipped with double-layered, tempered Low-E glass walls. These offer exceptional thermal insulation and UV protection while providing an unobstructed, breathtaking view of the surroundings.

Plug-and-Play Mobility

The D07 is a fully integrated unit pre-installed with electrical, plumbing, and HVAC systems at the factory. Once delivered by crane, simply connect to local water and power for immediate use.

Luxury Interior & Smart Control

Features eco-friendly wood-texture flooring, premium carbon fiber wall panels, master bedroom, modern bathroom with dry/wet separation, and integrated smart home systems with optional voice control.

Cold Climate Insulation Solutions

Glass Insulation

Glass curtain wall (6+16+6) double-pane LOWE tempered glass / laminated glass
Characteristics: Heat insulation, insulation, sound insulation
Skylight (6+1.52+6) double-pane tempered glass with heat insulation properties

Cabin Insulation

The cabin and outer shell are uniformly sprayed with polyurethane insulation foam agent for comprehensive thermal protection.

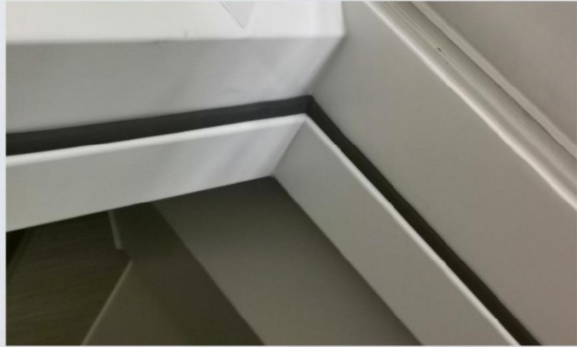

Cabin Sealing Performance

All seams inside the cabin are sealed with environmentally friendly sealant
Entrance door installed with waterproof sealing rubber strip
Ensures sealed but airtight environment

Pipe Insulation

Insulation materials (rubber, plastic, polyethylene) wrap cold/hot water pipes and drainage systems
Special anti-freezing insulation pipe sleeves
Optional heating devices for pipes in extreme conditions

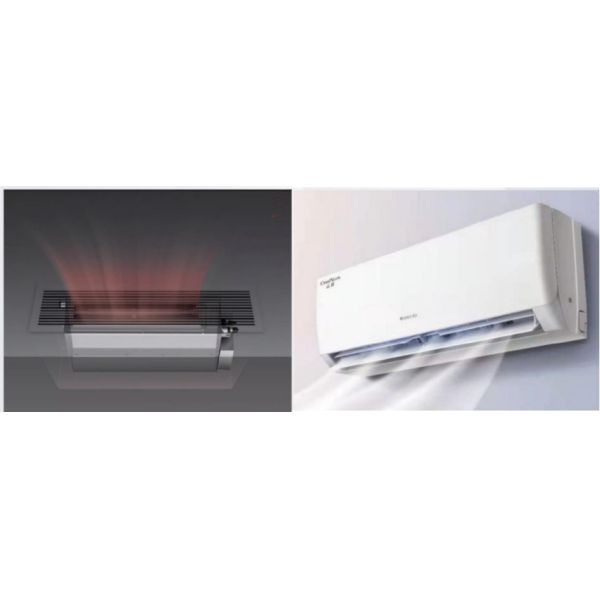

Heating Systems

Air conditioning with both cooling and heating functions (central and split systems available)
Underfloor heating with thick baseboard floor featuring graphene technology
Comprehensive climate control for all weather conditions

Transportation and Application Scenarios

The Model D07 is designed for easy transportation and versatile deployment across various settings including luxury resorts, private estates, and commercial hospitality applications.
